GD series
Compact package design of its second gearbox was optimized to minimize stage height and footprint so that it can be associated with various stepping motors or servo motors.
Compact package design of its second gearbox was optimized to minimize stage height and footprint so that it can be associated with various stepping motors or servo motors.
Production information
Automatic System

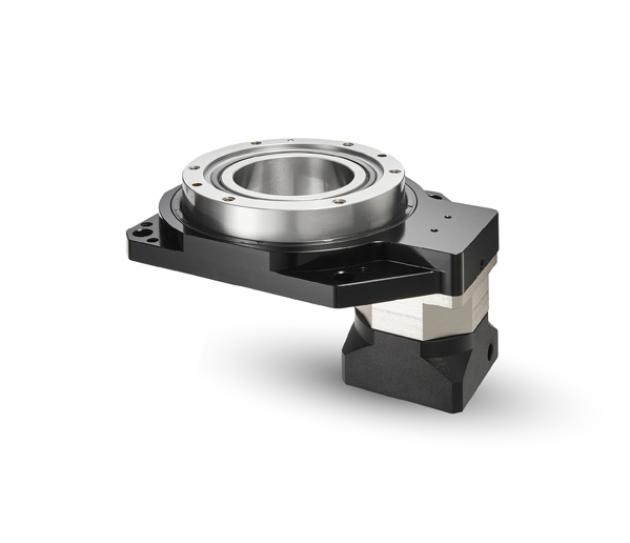

Hollow Rotary Table GD Series
Feature

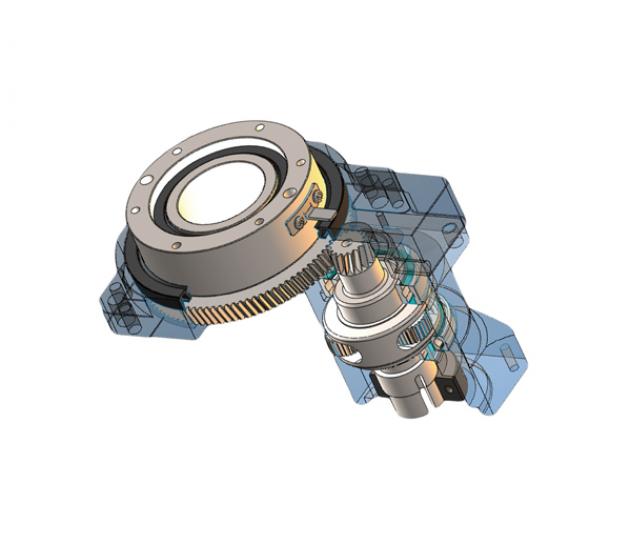

“Superior & single monolithic design ”
Large Center Aperture
to allow the passage of the optical path or cables directly through the stage.
High Gear Ratio
18/1, 30/1 (Standard)
High Torque
High gear modulus for high load capacity.
High Stiffness
is offered by the single monolthic design of the table&bearing.
Specification

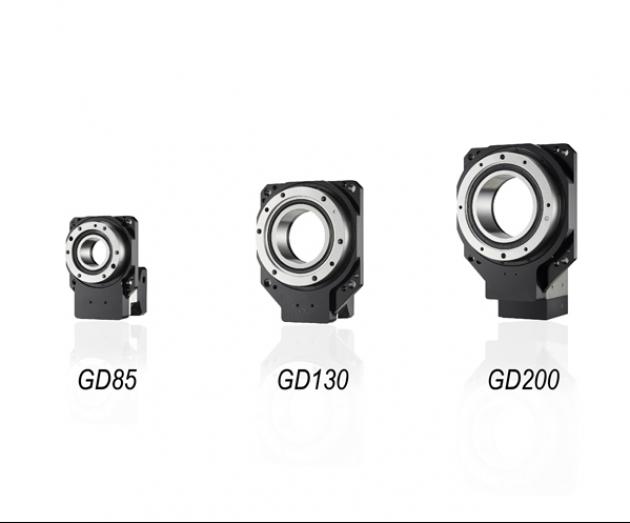

GD motor size
【GD85】Max. torque：115 N-m / Aperture：33 mm
【GD130】Max. torque：140 N-m / Aperture：62 mm
【GD200】Max. torque：250 N-m / Aperture：100 mm
